NEUTRON LLC

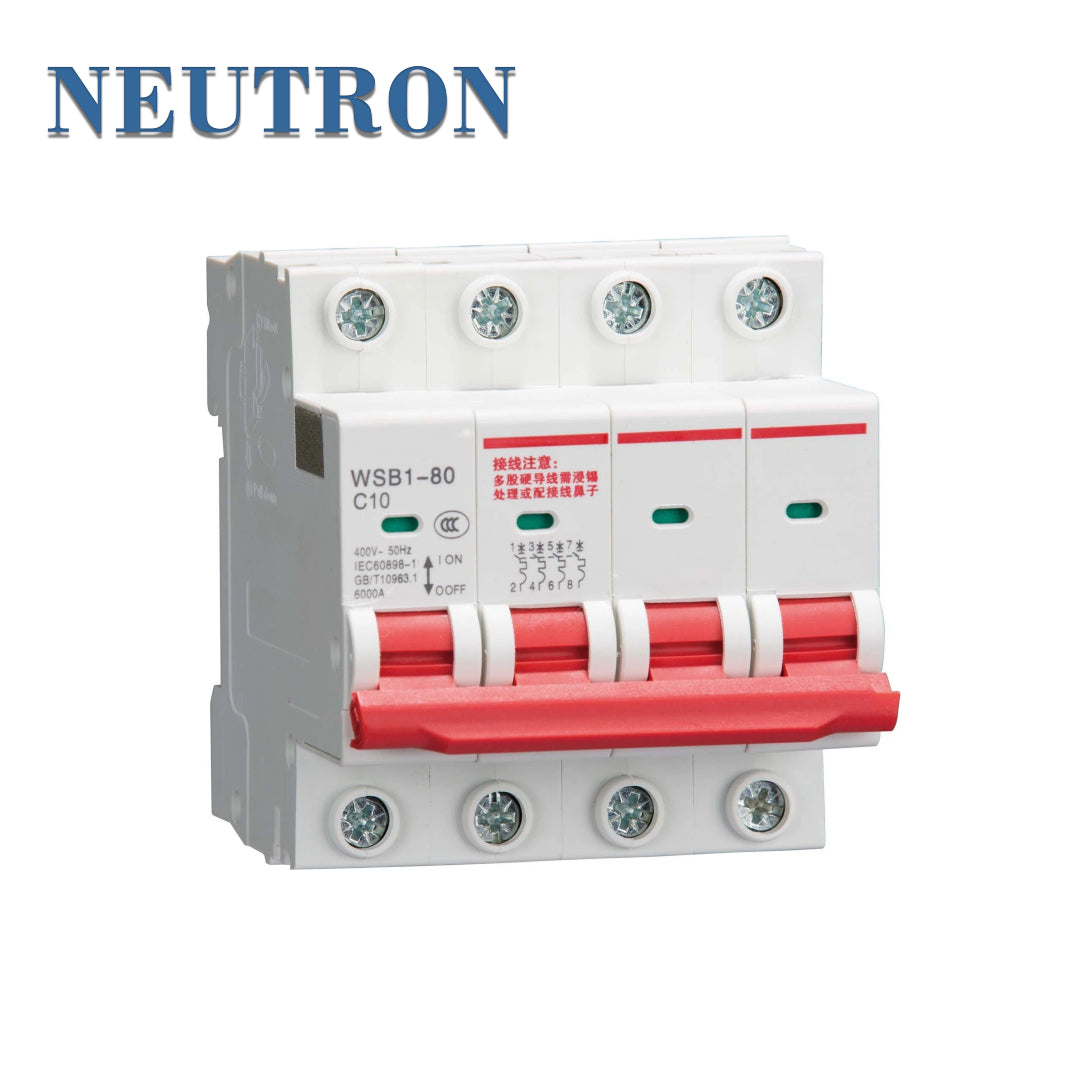

WSB1-80 MCB 80A/6KA

WSB1-80 MCB 80A/6KA

$0.95
$0.95
Sale Sold out
POLE
Current

Technical Specifications

Specification Parameters
Rated Current (In) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A

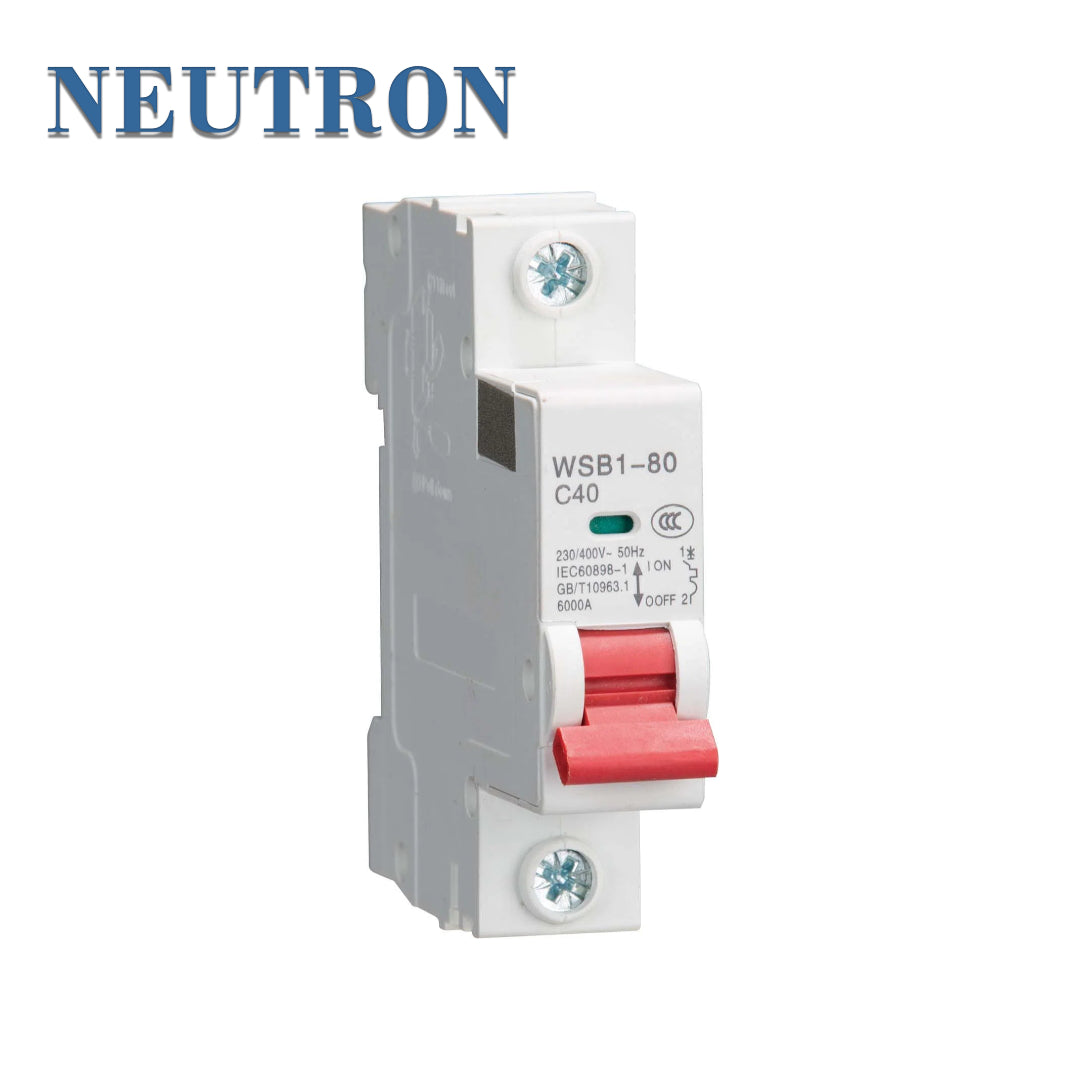

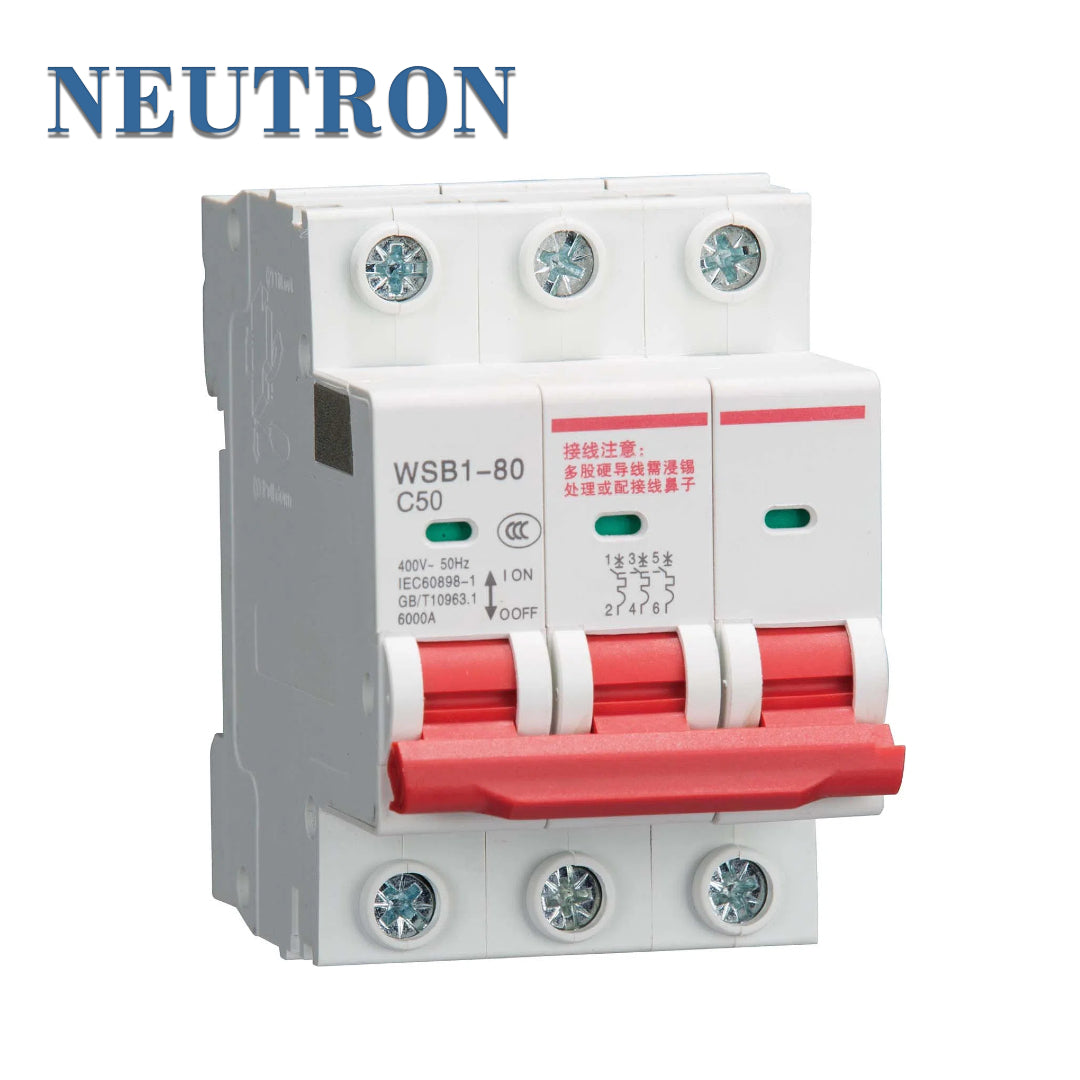

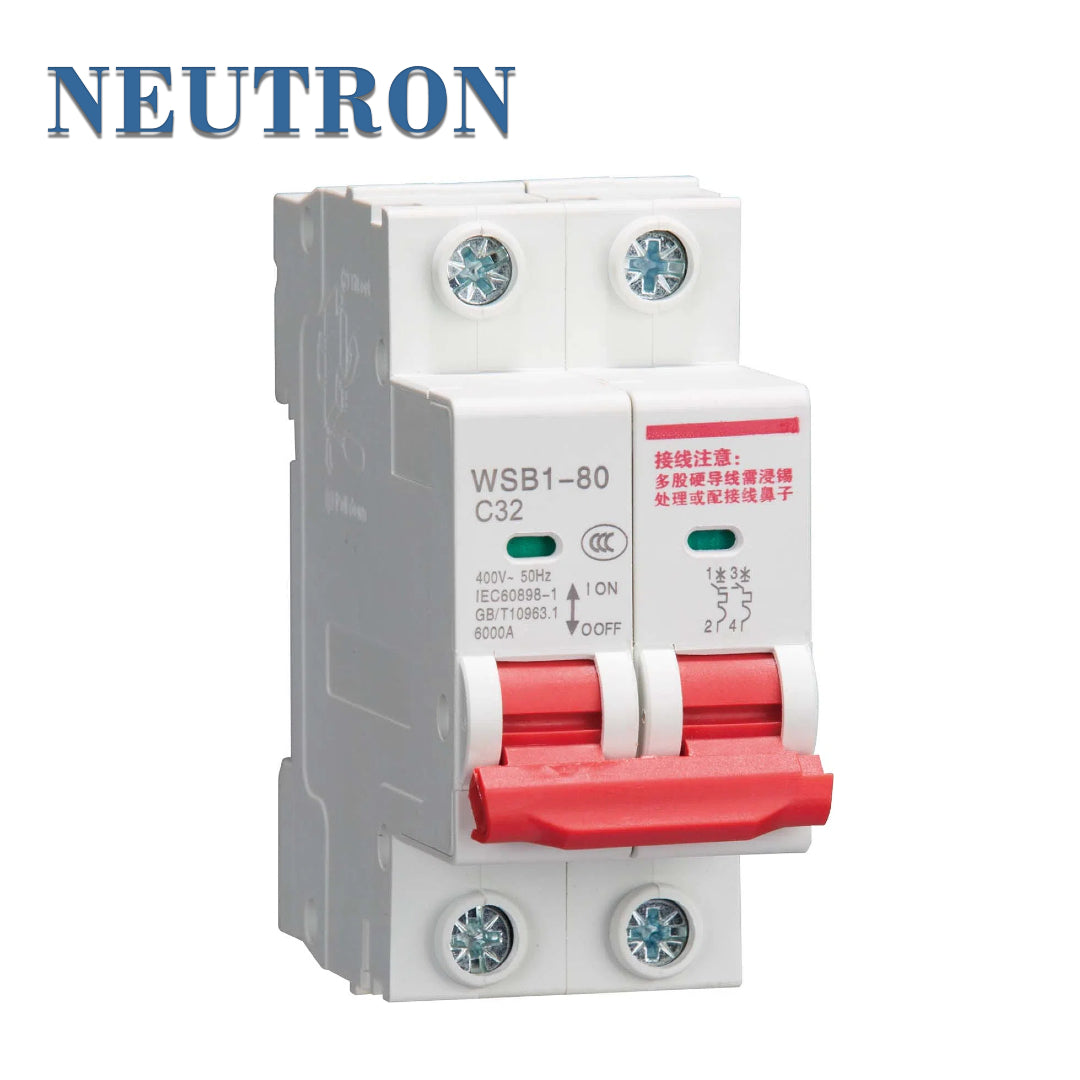

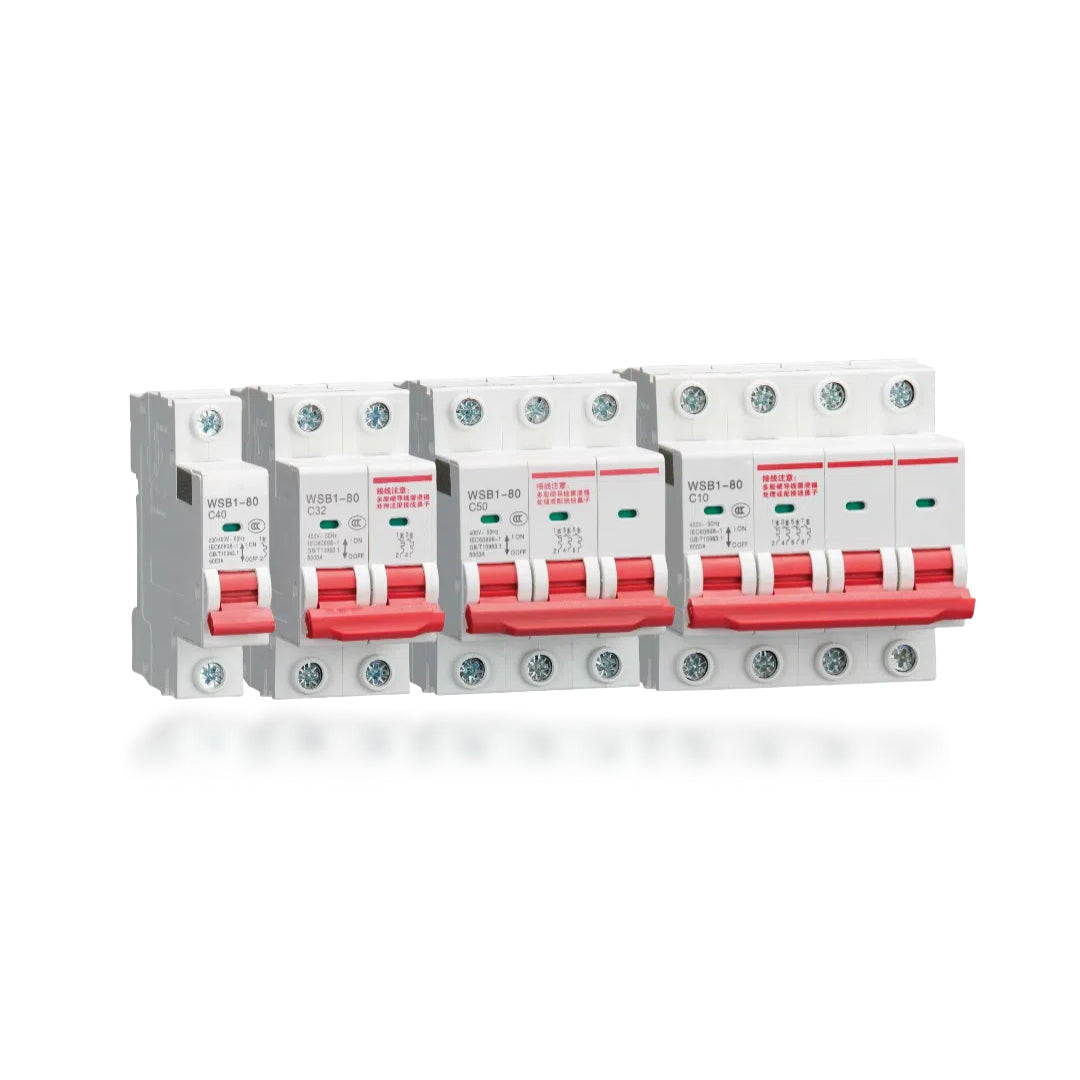

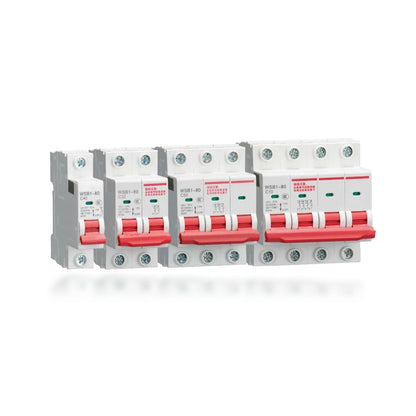

Number of Poles 1P, 2P, 3P, 4P
Rated Voltage (Ue) 230V/400V
Rated Breaking Capacity 6000A
Instantaneous Trip Type C, D
Instantaneous Trip Current Type C: 5In ~ 10In
Type D: 10In ~ 50In
Tripping Time Refer to the provided tripping curve/table for detailed time-current characteristics. (e.g., >1 hour at 1.05In, <1 hour/2 hours at 1.2In, 0.1s - 5s at >5In/>10In)
Connection Method Screw terminals
Installation Method DIN rail mounting

Note: For detailed tripping curves and full technical data, please refer to the product datasheet.

Applications

The WSB1-80 series miniature circuit breakers primarily used for overload and short-circuit protection in:

  • Electrical circuits in residential buildings
  • Electrical circuits in commercial buildings
  • Similar installations requiring protection against overcurrents and short circuits.

They are designed for installation on standard guide rails (DIN rail mounting).

Certifications

The WSB1-80 series product complies with:

  • IEC 60898.1 standard
  • GB 10963.1 standard

It has obtained the CCC (China Compulsory Certification).
