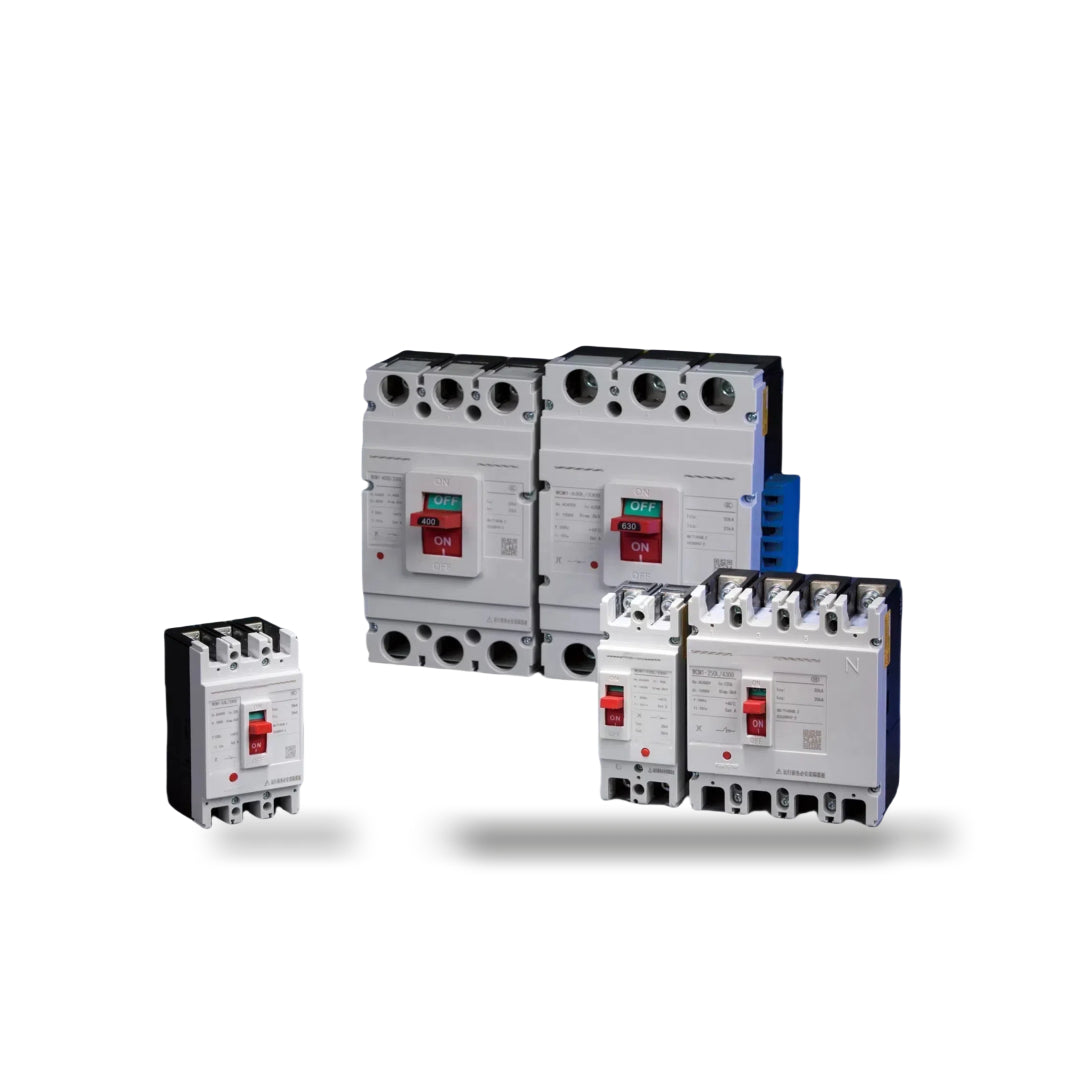

WCM1 Moulded Case Circuit Breaker Series

Overview

The WCM1 series moulded case circuit breaker (hereinafter referred to as the circuit breaker) is a new type of circuit breaker developed and manufactured by our company using international advanced design and manufacturing technology. Its rated insulation voltage is 800V (500V for WCM1-63).

It is suitable for circuits with AC 50Hz, rated working voltage of 400V and below, and rated working current up to 1250A for infrequent conversion and infrequent starting of motors.

The circuit breaker has overload, short-circuit, and undervoltage protection devices, which can protect lines and power equipment from damage.

According to the level of its rated ultimate short-circuit breaking capacity, the circuit breaker is divided into three types: L type (standard type), M type (higher breaking type), and H type (high breaking type). This circuit breaker has the characteristics of small size, high breaking capacity, short arc (zero arc for some specifications), and vibration resistance, making it an ideal product for land and marine use. This circuit breaker can be installed vertically or horizontally.

This circuit breaker complies with the following standards: IEC60947-1 and GB/T14048.1 General, IEC60947-2 and GB14048.2 Low-voltage circuit breakers, IEC60947-4 and GB14048.4 Contactors and motor starters, IEC60047-5:1 and GB14048.5 Electromechanical control circuit devices.

Classification

According to the number of product poles:

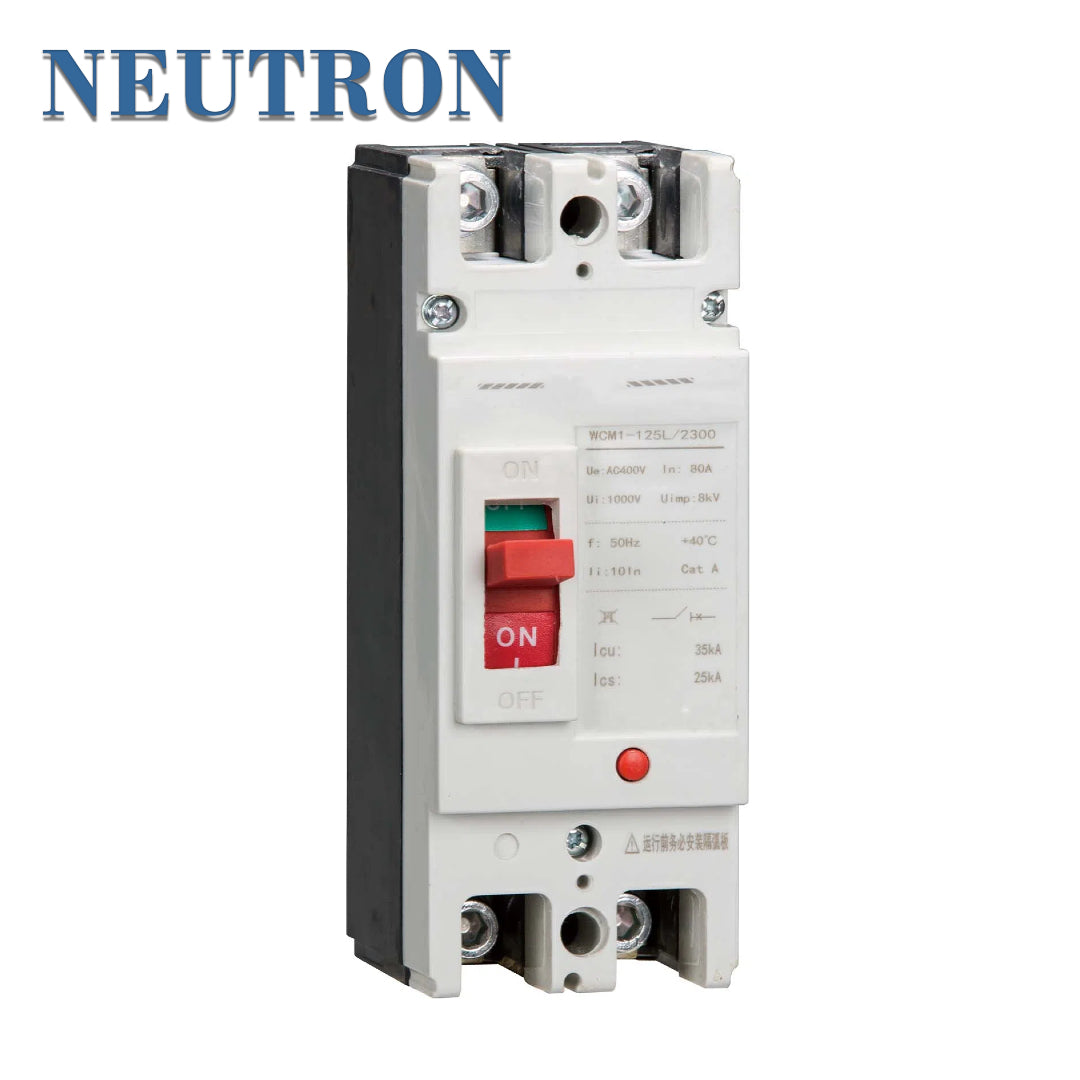

  • Two poles (100A, 225A);

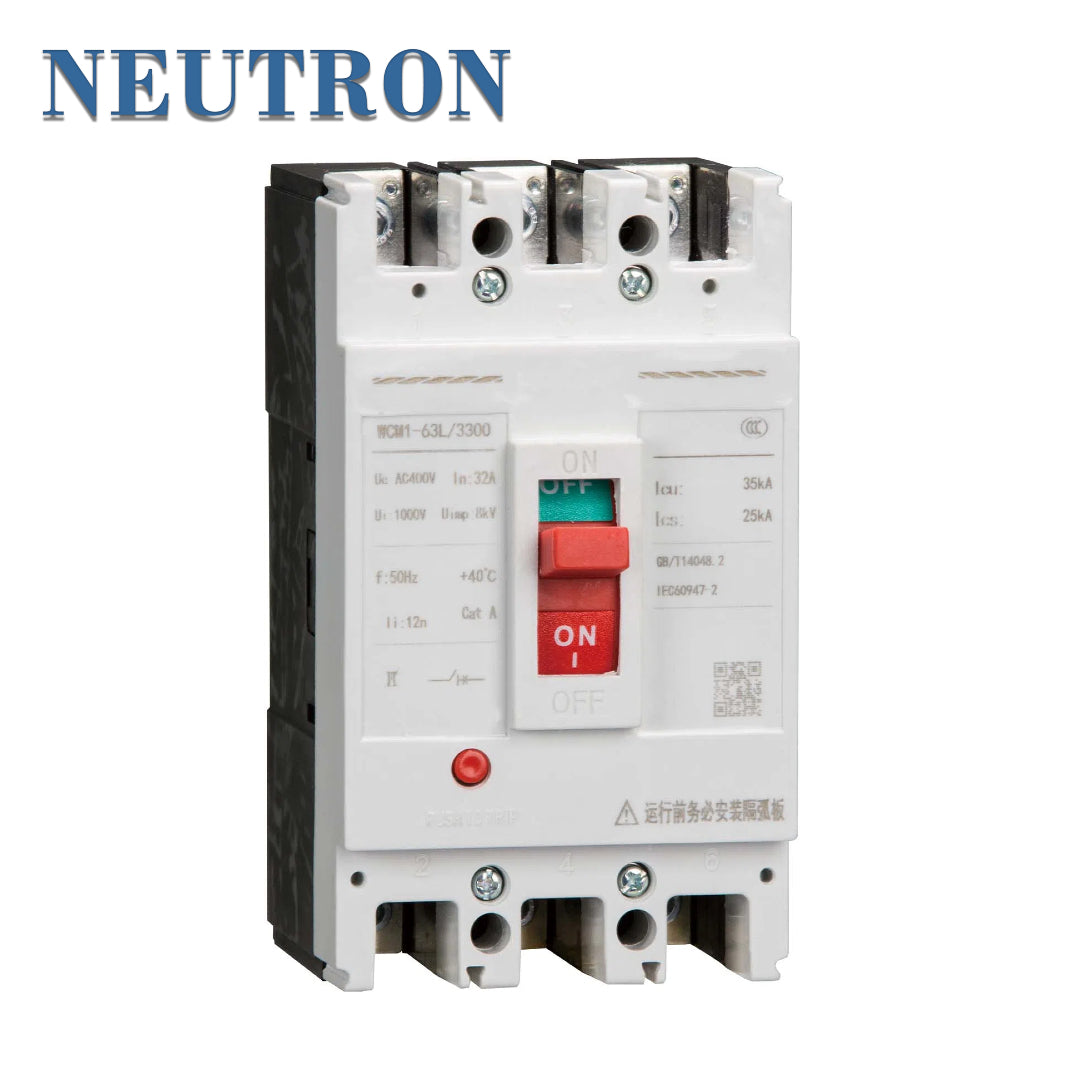

  • Three poles;

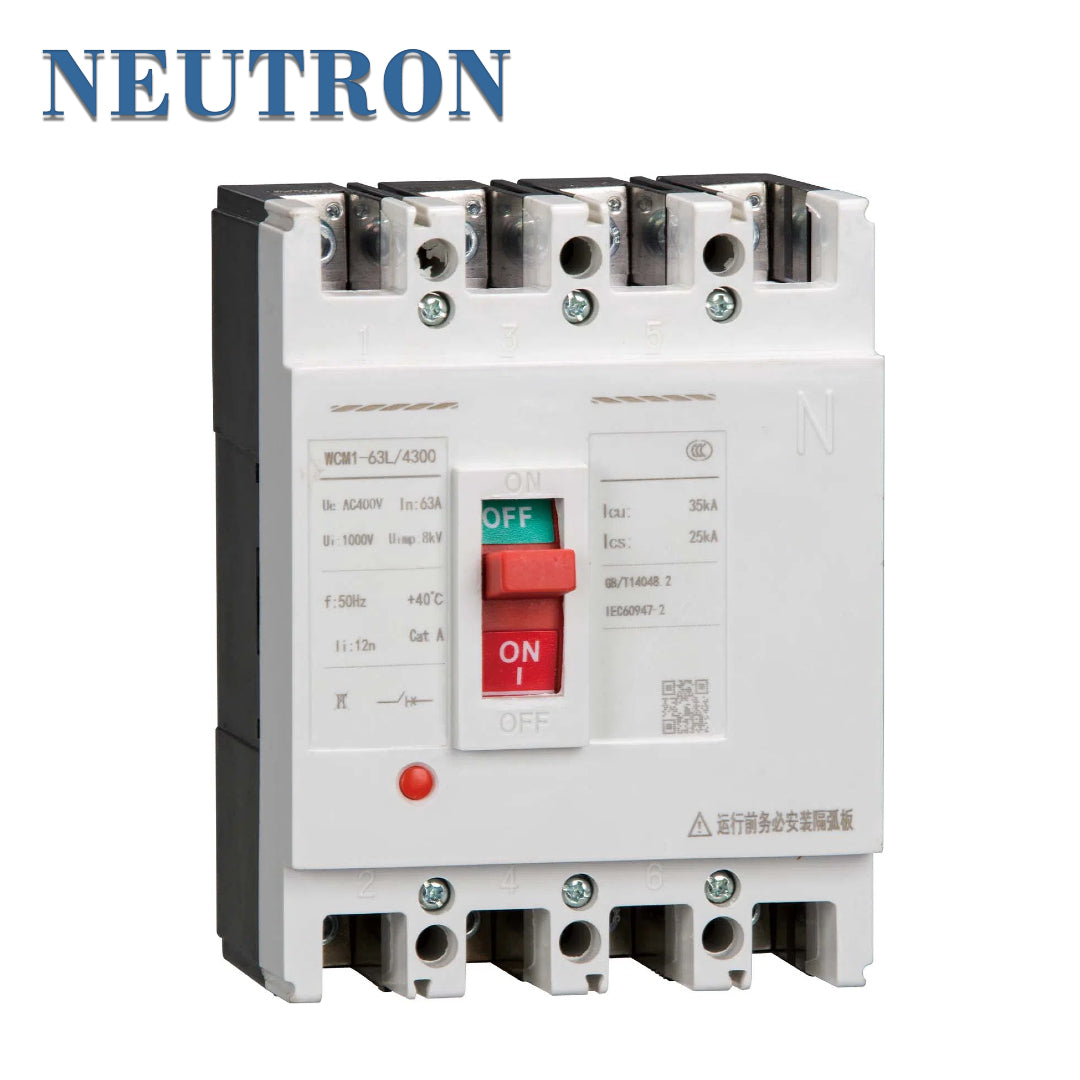

  • Four poles;

Types of neutral pole (N pole) in four-pole products:

  • Type A: The N pole is not equipped with an overcurrent release, and the N pole is always connected and does not close or open together with the other three poles;
  • Type B: The N pole is not equipped with an overcurrent release, and the N pole closes and opens together with the other three poles (N pole closes first and opens later);
  • Type C: The N pole is equipped with an overcurrent release, and the N pole closes and opens together with the other three poles (N pole closes first and opens later);
  • Type D: The N pole is equipped with an overcurrent release, and the N pole is always connected and does not close or open together with the other three poles:

According to rated current (A):

  • WCM1-63: (6), 10, 16, 20, 25, 32, 40, 50, 63A nine levels (6A specification has no overload protection);
  • WCM1-100: (10), 16, 20, 25, 32, 40, 50, 63, 80, 100A ten levels;
  • WCM1-225: 100, 125, 140, 160, 180, 200, 225A seven levels;
  • WCM1-400: 200, 225, 250, 315, 350, 400A six levels;
  • WCM1-630: 400, 500, 630A three levels;
  • WCM1-800: 630, 700, 800A three levels;
  • WCM1-1250: 800, 1000, 1250A three levels;

According to wiring method:

  • Front connection;
  • Rear connection;
  • Plug-in type;

According to the type of overcurrent release:

  • Thermal-magnetic (composite) type;
  • Electromagnetic (instantaneous) type;

Protection Characteristics

The thermal release of the circuit breaker has inverse time characteristics; the electromagnetic release acts instantaneously. The characteristics are shown in the table below.

Inverse Time Characteristics for Power Distribution

Rated Current (A) 1.05In (Cold State) Non-operating Time 1.30In (Hot State) Operating Time Operating Current (A)
In ≤ 63 > 1h < 1h 10In ± 20%
63 < In ≤ 1250 > 2h < 2h
5In ± 20%, 10In ± 20%

Inverse Time Characteristics for Motor Protection

Rated Current (A) 1.05In (Cold State) Non-operating Time 1.2In (Cold State) Operating Time 1.5In (Cold State) Operating Time 7.2In (Cold State) Operating Time Operating Current (A)
In ≤ 225 > 2h < 2h < 4min 4S < Tp < 10S 12In ± 20%
225 < In ≤ 630 > 2h < 2h < 8min 6S < Tp < 20S

Main Technical Parameters

Model Frame Level Rated Current (A) Rated Current (A) Rated Working Voltage (V) Rated Insulation Voltage (V) Rated Ultimate Short-circuit Breaking Capacity (KA) 400V Rated Operational Short-circuit Breaking Capacity (KA) 400V Overall Dimensions (mm) W(3P/4P) Overall Dimensions (mm) H Overall Dimensions (mm) D Installation Dimensions (mm) A Installation Dimensions (mm) B Installation Dimensions (mm) Φd
WCM1-63L 63 6, 10, 16, 20, 25, 32, 40 AC400 AC500 25 18 78 / 103 135 73.5 25 117 Φ3.5
WCM1-63M 50, 63 50 35 81.5
WCM1-100L 100 10, 16, 20, 25, 32, 40 AC400 AC800 35 17.5 92 / 122 150 68 30 129 Φ4.5
WCM1-100M 50, 63, 80, 100 50 35 86
WCM1-100H 85 50
WCM1-225L 225 100, 125, 140, 160 AC400 AC800 35 18 107 / 142 165 86 35 126 Φ4.5
WCM1-225M 180, 200 50 35 103
WCM1-225H 225 85 50
WCM1-400L 400 200, 225 AC400 AC800 50 25 150 / 198 257 105 44 194 Φ7
WCM1-400M 250, 315, 350, 400 65 42 106.5
WCM1-400H 100 65
WCM1-630L 630 400, 500 AC400 AC800 50 25 182 / 240 270 110 58 200 Φ7
WCM1-630M 630 65 42 110
WCM1-630H 100 65 210 / 275 115.5
WCM1-800M 800 630, 700, 800 AC400 AC800 75 50 210 / 275 275 115.5 70 243 Φ7
WCM1-800H 100 65
WCM1-1250 1250 800, 1000, 1250 AC400 AC800 65 40 210 / 280 450 191 70 298 Φ9

Power Consumption Rate

Model Energizing Current (A) Total Power Consumption (VA) Front Connection Total Power Consumption (VA) Rear Connection Total Power Consumption (VA) Plug-in Connection
WCM1-63(L, M) Direct Thermal (10~25A) 25 25 28 32
WCM1-100(L, M, H) Direct Thermal (10~25A) 25 40 45 45
WCM1-63(L, M) Indirect Thermal (32~100A) 63 20 24 24
WCM1-100(L, M, H) Indirect Thermal (32~100A) 100 35 40 40
WCM1-225(L, M, H) 225 62 70 70
WCM1-400(L, M, H) 400 115 125 125
WCM1-630(L, M, H) 630 187 200 200
WCM1-800(M, H) 800 262 244 244
WCM1-1250 1250 237 282 282
